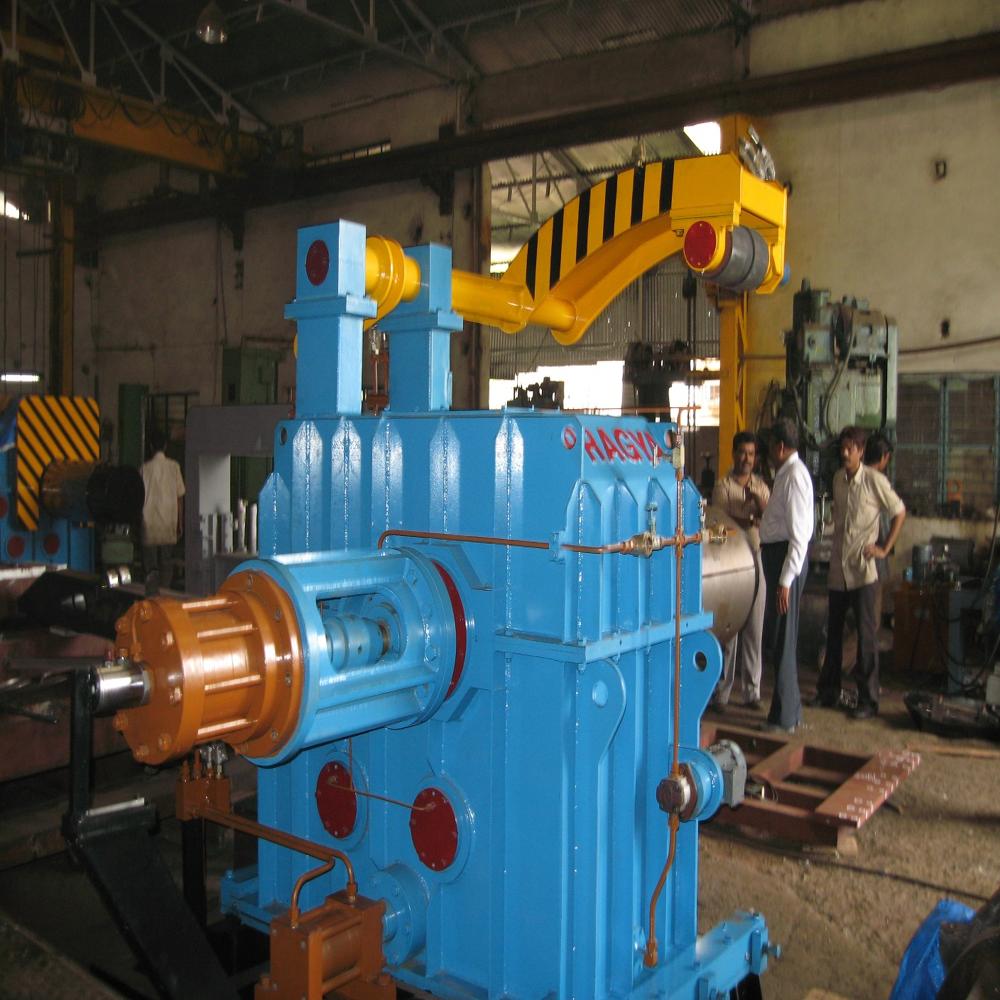

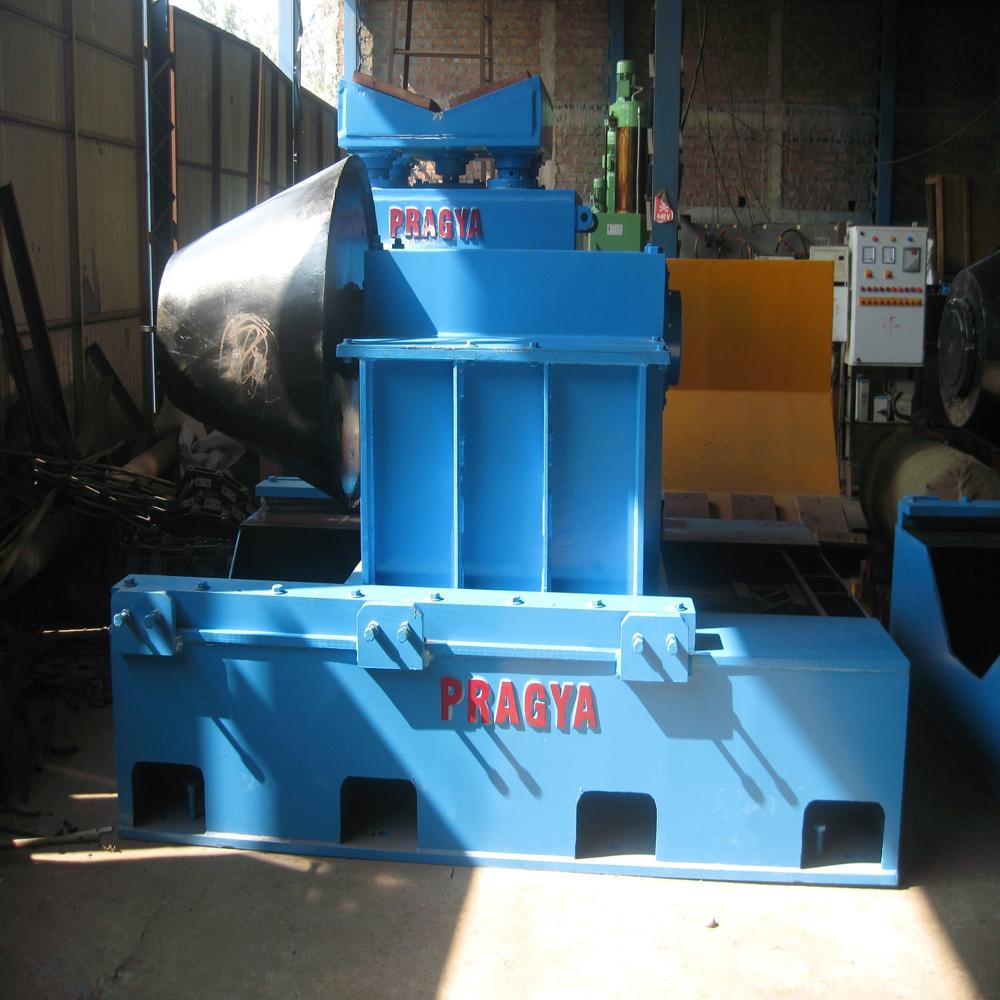

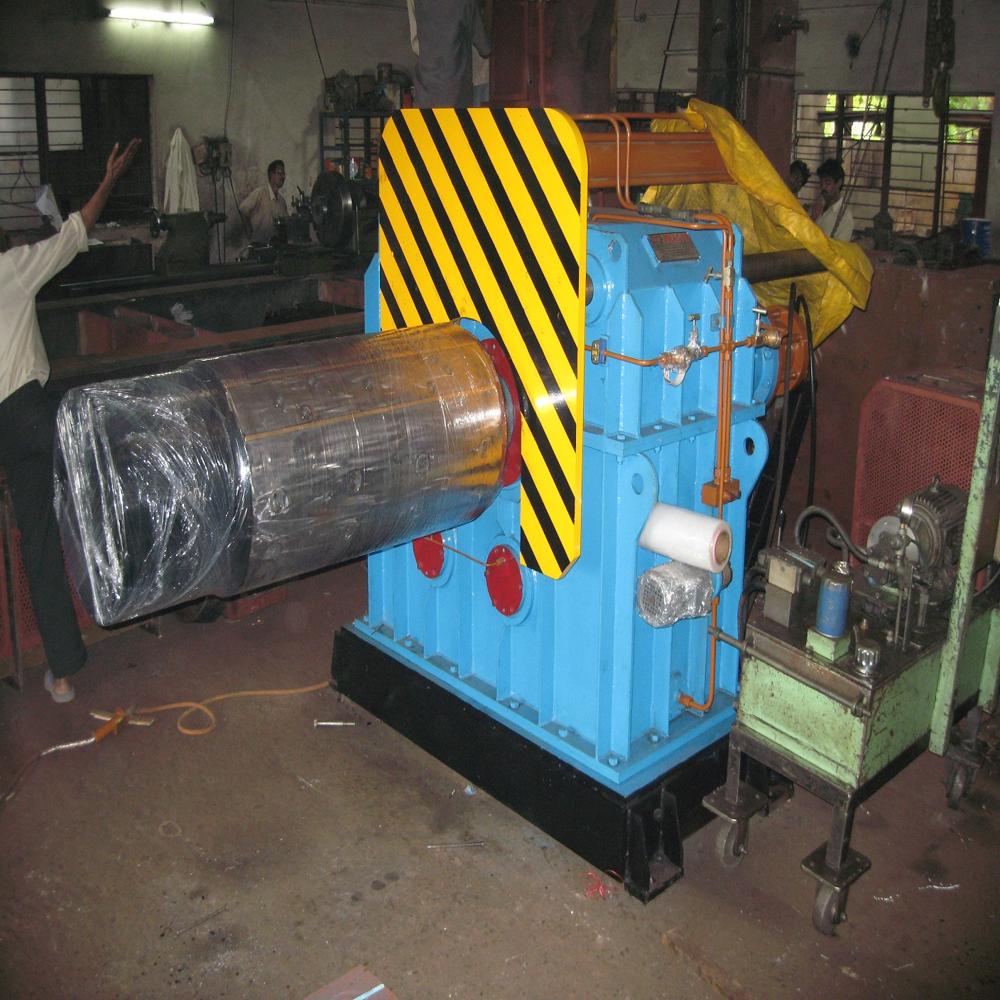

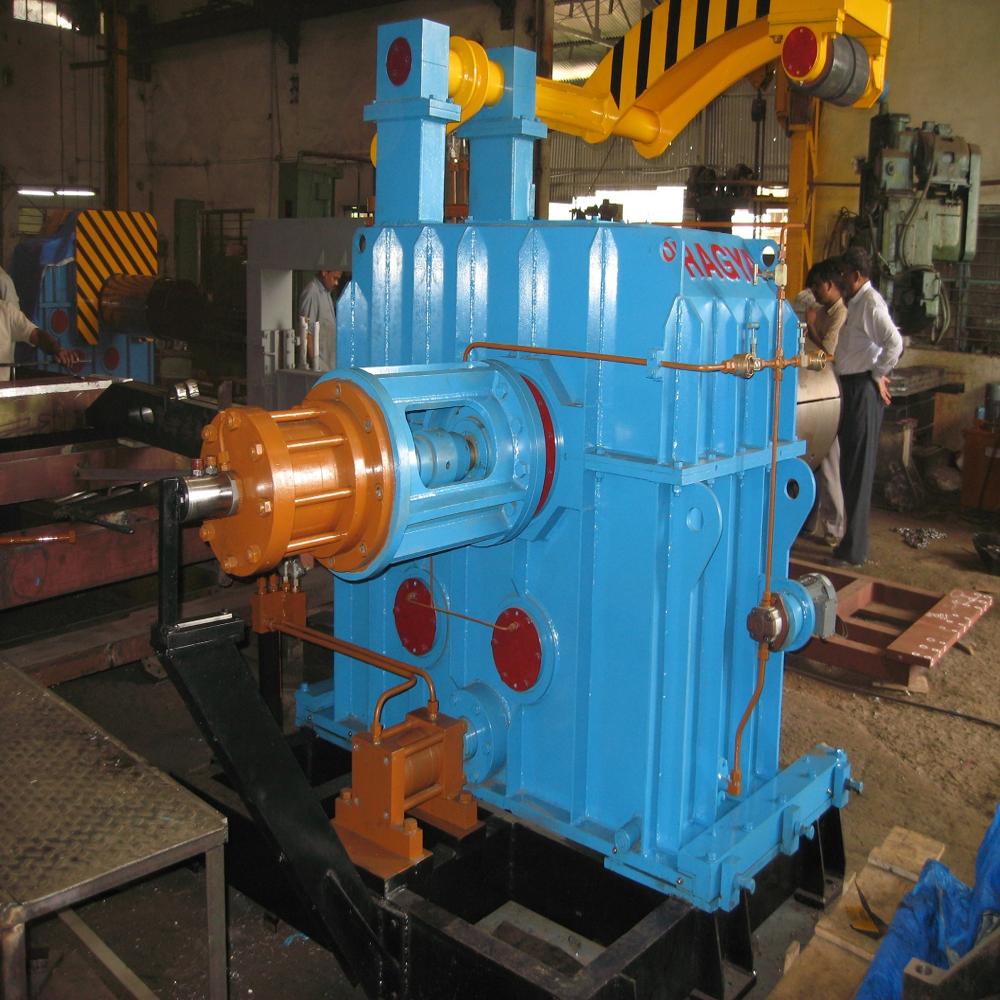

Recoiler Machine

Product Description

With an impressive record of growth in the industry, we have developed ourselves as the most promising manufacturer and exporter of Recoiler Machine. We manufacture this machine with the help of our expert workforce using high quality mild steel and cast iron. This machine is equipped with tensioning device. It is mainly used to roll metal strips, plastic taps and more to coils. Also, it is consisted of upper & lower rollers, material guiding device, tensioning gap adjusting device, brake device and more. Recoiler Machine is suitable for all kinds of material, no matter thin or thick, metal or nonmetal sheets.

Technical specification:

Coil ID Range	400, 508 mm or 600 mm
Drive	AC VFD / DC Motor
Coil Width	250 mm Min. to 1650 mm Max.
Coil Weight	500 Kg. Min. to 35 MT Max.
Coil Thickness	0.2 mm Min. to 7 mm Max.

Advanced Coil Handling Technology

Built for demanding steel coil operations, this recoiler incorporates state-of-the-art automation and safety. The direct gearbox coupling and AC induction motor offer reliable, reversible rotation for smooth uncoiling and rewinding. Its PLC control system facilitates user-friendly operation and process customization.


Durable and Safe Construction

Constructed using mild or alloy steel, the machine boasts a powder-coated, rust-resistant finish. Safety is prioritized with overload protection and emergency stop features, ensuring secure workflow even during heavy load operations or unexpected scenarios.


Flexible and Efficient Performance

Designed to accommodate coil inner diameters from 450 mm to 800 mm and outer diameters up to 1,800 mm, the recoiler delivers adaptable and precise handling. Adjustable line speed and customizable lifting height make it suited for diverse production requirements, reducing downtime and optimizing throughput.
